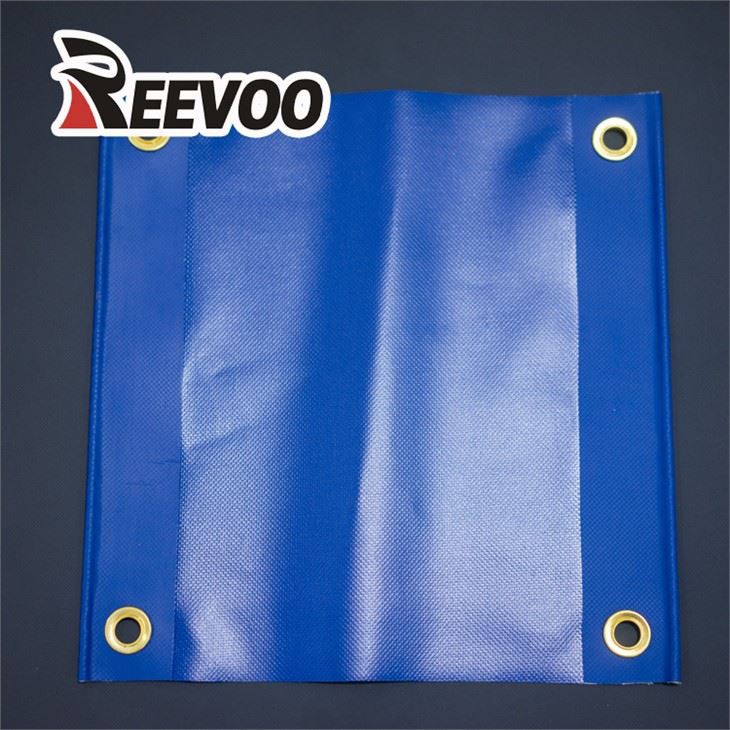

Fire Retardant PVC Tarpaulin Sheets

How We Produce Fire Retardant PVC Laminated Tarpaulin



Reevoo achieves flame retardancy for PVC laminated tarpaulin through formula design and precise lamination (temperature 140-155℃, pressure 0.3-0.5MPa), leveraging its "PVC film + polyester base fabric + PVC film" sandwich structure.



Our complete flame-retardant solutions:



• Add 15-25% inorganic flame retardants (aluminum hydroxide, 1-5μm) and 5-10% organic flame retardants (WSFR-PCF) to PVC films to interrupt combustion (verified by SEM test, particle dispersion uniformity ≥95%).
• Pre-treat high-strength polyester base fabric with 8-12% phosphorus-nitrogen flame-retardant impregnation (80-90℃, 30min) for internal fire resistance (flame spread rate ≤5cm/min).
• Control lamination temperature/pressure to prevent flame-retardant decomposition (decomposition temperature ≥200℃) and ensure firm layer bonding (peeling strength ≥18N/cm).



Finished tarpaulins maintain stable flame resistance (flame-retardant uniformity error ≤5% across width), plus lightweight (340-610gsm), flexible, and weldable properties (welding strength ≥80% of base material). They self-extinguish (≤3s), emit low smoke (SDR ≤30), and limit flame spread (≤10cm)-ideal for construction, medical, ventilation, and temporary shelter use.

How We Produce Fire Retardant PVC Coated Tarpaulin



Fire retardant PVC coated tarpaulin is made by scraping liquid PVC paste (with integrated flame retardants) onto polyester base fabric and curing at high temperatures (150-170℃).



Key production steps:





• Mix 12-20% flame-retardant additives, 3-5% smoke suppressants, and 2-3% thermal stabilizers into PVC paste (verified by mixing test, uniformity ≥98%).
• Liquid PVC penetrates polyester fiber gaps (penetration depth ≥0.5mm) for full flame-retardant distribution (tested by cross-section analysis).
• High-temperature gelling/curing (160-175℃, 5-8min) fixes flame-retardant components for long-lasting performance (flame-retardant retention rate ≥85% after 500h UV aging).



Final products offer excellent aging (500h UV aging, tensile strength retention ≥80%), friction (Martindale wear ≥5000 cycles), and outdoor resistance, with stable fire protection (LOI ≥32%)-ideal for military covers, large tents, industrial curtains, and construction enclosures.

Fire retardant PVC Tarpaulin sheet specification
Sheet	4x5m, 4x8m, 5x5m, 5x8m, 5x10m, 6x6m, 6x10m 10x10m,10x12m,etc
Color	Army yellow, Sky blue, Dark green, Army Green, Yellow grey, Golden yellow, Orange, Lightgrey, etc.
Packing	Sheet : 1 or 2 ps one bag ,OEM label
Delivery Time	15-20 days after receiving deposit
Sample	Provide free sample

Reevoo fire retardant PVC tarpaulins comply with global certifications, with valid test reports (available upon request):

• NFPA 701 (United States): Class I, flame spread ≤25cm in 10min, self-extinguishing ≤3s (Test Report: SGS-2024-001)
• EN 13501 (European Union): B-s1,d0, no dripping, smoke density SDR ≤30 (Test Report: TUV-2024-008)
• GB 8624 (China): B1 grade, oxygen index ≥32% (Test Report: CNAS-2024-015)
• ASTM D6413 (United States): Flame spread ≤10cm, afterflame time ≤5s (Test Report: Intertek-2024-022)

All products pass strict laboratory testing (SGS/TUV/Intertek) under standard conditions (23℃, 50% RH) to ensure stable, reliable fire performance (batch uniformity error ≤5%).



Our Certificate

CE

CE

ISO

ISO

FAQ





01. Are your fire retardant PVC tarpaulin sheets waterproof?

Yes. All our tarpaulins have a waterproof rating of ≥5000mmH₂O, tested by SGS (Test Report: SGS-2024-002), suitable for outdoor and humid environments.

02. Do you support custom size, color and thickness?

Yes. We customize production based on customer requirements: thickness 0.3-2.0mm, weight 320-2000 gsm, size max 5.1m width, and colors matching any Pantone code.

03. When can I get the quotation?

We usually provide a quotation within 24 hours after receiving your inquiry. If you need the price urgently, you may call us directly or note this in your email or WhatsApp message, and we will prioritize your request.

04. How can I get a sample to check your quality?

We offer available stock samples for quality checking free of charge. A4-size samples are complimentary, and customized sample sizes are also available upon request. For bulk samples, the sample cost can be fully refunded once you place a formal order.

Versatile: Our fire retardant PVC tarpaulin can cover and protect your vehicle, wood supplies and building materials on construction sites. It can also be hung as a protective sheet to keep floors clean during painting, sanding or polishing work. Its applications are virtually endless.

Ideal for outdoor equipment, trucks, warehouses, construction sites, farm machinery, firewood storage, camping and hunting activities.

Note: If you have any questions or concerns, please feel free to contact us. We will respond promptly and provide you with a satisfying solution. Please keep an eye on your email for our reply.

Advantage:

1. Flexible

2. High strength

3. Different color available

4. Heat sealed seams available

5. Reinforced hems with grommets available
