Aluminum Composite Panel Exterior Facade Signage Board From Shandong Manufacturer
Aug 22, 2017
Basic Info
Model NO.: RVT-7003
Panel Thickness: 4mm
Function: Anti-static, Anti-Bacterial, Mould-proof
Certification: ASTM, ISO
Core: LDPE
Trademark: NEITABOND
Specification: 1220x2440mm 1250x3600mm 1500x5000mm etc.
HS Code: 7606119100
Surface Finishing: Coating
Aluminum Thickness: 0.4mm
Usage: Interior
Colors: More Than 100s, Ral or Pantone Color Available
Alu. Alloy: AA1100, AA1010, AA3003, AA5005
Transport Package: Nude, in Wooden Pallet, or as Request
Origin: China
Product Description
PE PVDF Aluminum Composite Panel Exterior Building Facade Signage Board from Shandong Manufacturer
NEITABOND ACP was established in 2003 (13 years experience), which is located in Linyi city, Shandong Province, China. It is one of the largest professional manufacturers of aluminum composite materials in China. We are an ISO9001-2000 and ISO14001 accredited enterprise.
NEITABONG B1/A2 Fire resistance aluminum composite panel is composed by aluminum and a non-combustible PE core. The product is in high demand due to the increasing importance placed on architectural requests for sale, non-toxic and green materials. The panels also possess excellent flame retardant and low smoke emission properties.

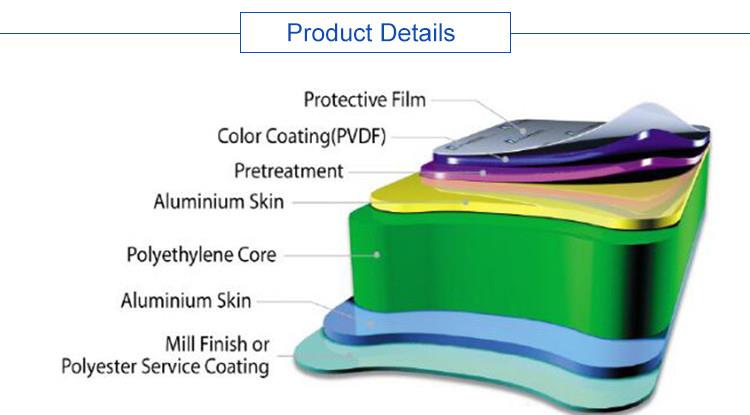

1) Raw material:
Base material: high strength embossed aluminum alloy sheet
Core material: non-combustible miner B1 grade
Surface coating: PVDF, polyester, FEVE, NANO PVDF, Spectra coating
Back coating: primer coating
2) Product Specification
| Product name | 3mm/4mm/5mm/6mm thickness fireproof ACP with B1/A2 Grade |
| Model number | NTAD081905 |
| Brand | NEITABOND or OEM |
| Aluminum alloy | AA1100 AA3003 |
| Aluminum skin | 0.21mm-0.5mm |
| Panel thickness | 2mm,3mm,4mm,5mm,6mm |
| Panel width | 1000mm-2000mm |
| Panel length | 2440mm-6000mm |
| Surface treatment | PVDF, polyester, FEVE, NANO PVDF, Spectra coating |
| Colors | 70 colors,special colors available upon request |
| Customer size | Accepted |
| Package | Wood pallet or In bulk |
| MOQ | 500 SQM |
| Sample | FREE |
| Leading Port | Qingdao,China |
| Delivery Time | commonly 7-10 working days after getting your deposit |
3) Dimensional tolerance
| Panel Width | ±2mm |
| Panel Length | ±3mm |
| Panel Thickness | ±0.2mm |
| Panel Diagonal | ≤5mm |
| Aluminum sheet thickness | ±0.02mm |
Standard size: 1200X2440X3mm (Interior)
1220X2440X4mm (Exterior)
CUSTOMIZED sizes are available
4) Quality:
A)Under common temperatures and radiation, the surface is no color different.
B)Under natural climate, film coating will be no flake,no rubbles,no vestige and no pulverization.
C)Under common environment, no flake,no rubbles.
D)products with Pvdf coating guarantee 15~20 years.
E)According to international test standard, all the tested items are satisfied with high-class.
5) Characteristics:
A)Light weight, the intensity is high, easy to maintain, cut bend, arch and install. The panel average weight is 3.5 - 5.5 kg/sqm.
B)Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping.
C)The surface is smooth and flat and easy to maintain., just use neutral cleaner and water can totally renew the panel.
D)The aluminium surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance.
6) Application:
Office buildings
Shopping centers
Industry buildings
Airports
Hotels
Bus center
Hospital
Schools
Supermarkets
Residential buildings
